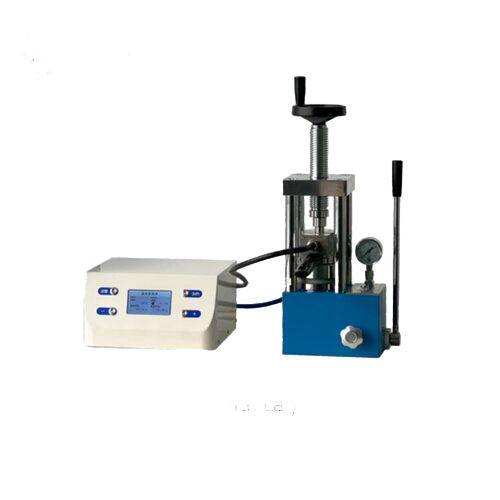

Split Manual Heated Lab Pellet Press is mainly used for pressing sample tablets within 3mm-100mm diameter. The tablet press is equipped with molds of various sizes based on the mechanical lever principle. It is both practical and convenient. The main machine is made of 304 stainless steel and the shell is made of environmentally friendly spray-coated. The pressure can be directly displayed. It is one of the essential equipment for laboratory research and development and production enterprises to handle powder. Manual tablet press mainly uses hand pressure to increase pressure to achieve the purpose of sample molding. It is convenient and fast. There are also many choices for the tablet press molds, including round molds, square molds, open-flap molds, ring molds, spherical molds, heating molds, special-shaped molds, custom-made and other different specifications and materials.
Technical Specification Split Manual Heated Lab Pellet Press

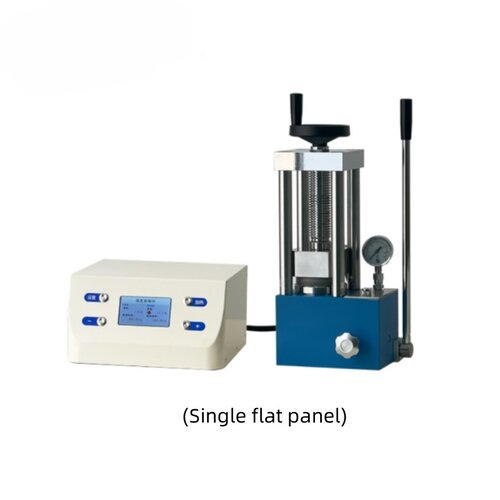

| Model | PCH-600A（Cylindrical） | PCH-600B（Single flat panel 100*100） |
| Pressure range | 0-15T（0-30MPa） | 0-24T（0-34MPa） |
| Piston diameter | Chrome plated cylinder
Φ80mm（d） |
Chrome plated cylinder
Φ95mm（d） |
| Main structure | Integrated sealing structure | The equipment has no sealed connections, reducing oil leakage points |
| Mold heating temperature | Room temperature
300℃/500℃ |
Room temperature 300℃/500℃ |
| Constant temperature time | 1 to 8 seconds | 1 to 8 seconds |
| Temperature control accuracy | 0.1℃ | 0.1℃ |
| Insulation method | Imported insulation board | Imported insulation board |
| Cooling method | Water cooling rapid cooling {Water cooling machine optional} | Water cooling rapid cooling {Water cooling machine optional} |
| Mold size | Cavity inner hole＜20mm (customizable) | Single plate heating 100X100mm(MXN) |
| lab press dimensions K*P*H | 245*175*415mm | 245*175*460mm |
| dimensions （L*W*H） | 800*470*415mm | 800*470*460mm |
| Voltage | 300W（220V/110V
Can be customized） |
300W（220V/110V
Can be customized） |
| Weight | 60Kg | 60Kg |
| Model | PCH-600C/CG（100*100） | PCH-600D1/DG1(180*180） |
| Pressure range | 0-24T | 0-60.0T |
| Piston diameter | Chrome plated cylinder
Φ95mm（d） |
Chrome plated cylinder
Φ150mm (d) |
| Main structure | The equipment has no sealed connections, reducing oil leakage points | The equipment has no sealed connections, reducing oil leakage points |
| Mold heating temperature | Room temperature 300C/500C | Room temperature 300C/500C |
| Constant temperature time | 1 to 8 seconds | 1 to 8 seconds |
| Temperature control accuracy | 0.1°C | 0.1℃ |
| Insulation method | Imported insulation board | Imported insulation board |
| Cooling method | Water cooling rapid cooling [Water cooler selection] | Water cooling rapid cooling [Water cooler selection] |
| Mold size | 100X100mm (MXN) | 180X180mm(MXN) |
| lab press dimensions | 245X175X500mm(KXPXH） | 405X260X525mm(KXPXH) |
| dimensions | 500X175X500mm(LXWXH) | 950X260X525mm(LXWXH) |
| Voltage | 600 W(220V/110V
Can be customized) |
1000 W(220V/110V
Can be customized) |
| Weight | 60Kg | 180Kg |
