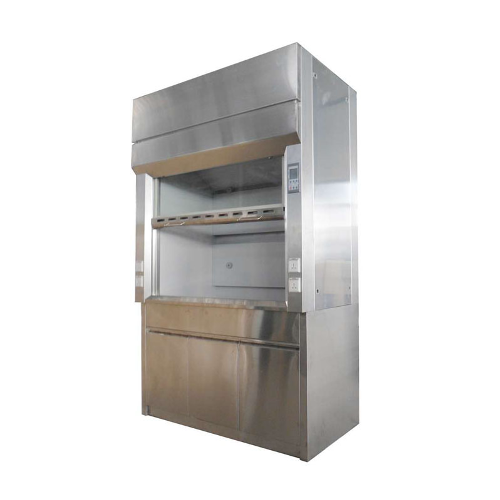

A Stainless Steel Fume Hood is a type of laboratory ventilation system designed to protect users from hazardous fumes, vapors, gases, and dust that may be produced during laboratory processes, such as chemical reactions, mixing, or heating substances. Stainless steel is commonly used for constructing these hoods due to its durability, strength, and resistance to corrosion, making it a suitable material for handling various chemicals and harsh conditions in a laboratory environment.
Technical Specifications of Stainless Steel Fume Hood
| Model | FH-SS |
|---|---|
| Main Frame | Stainless Steel |
|
Dimension W*D*H |
1200*850*2350mm (1-person) |
| 1500*850*2350mm (2-person) | |
| 1800*850*2350mm (3-person) | |
| Up-down Protection Glass | Transparant 5mm Toughened Glass |
| Max. Openning Height | 740mm (vertical adjustable up-down toughened glass) |
| MOC of Work Surface | Chemical Resistant Laminate/ Epoxy Resin / Ceramic (Optional) |
| Light | 2-tube Philip Lights (30W), 400 Lux |
| Socket | 2 Nos. (220V/10A) |
| Control Panel | Integrated liquid crystal screen control panel,visually controling several parameter, including fan on-off, lighting on-off,main power supply |
