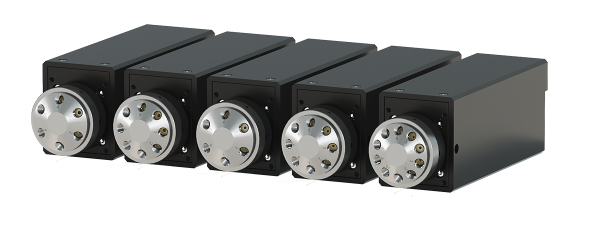

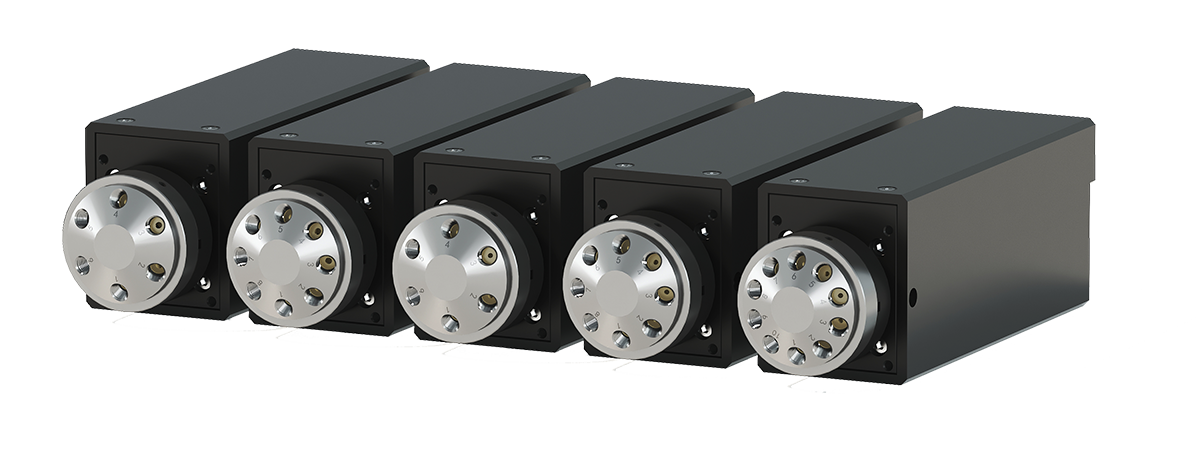

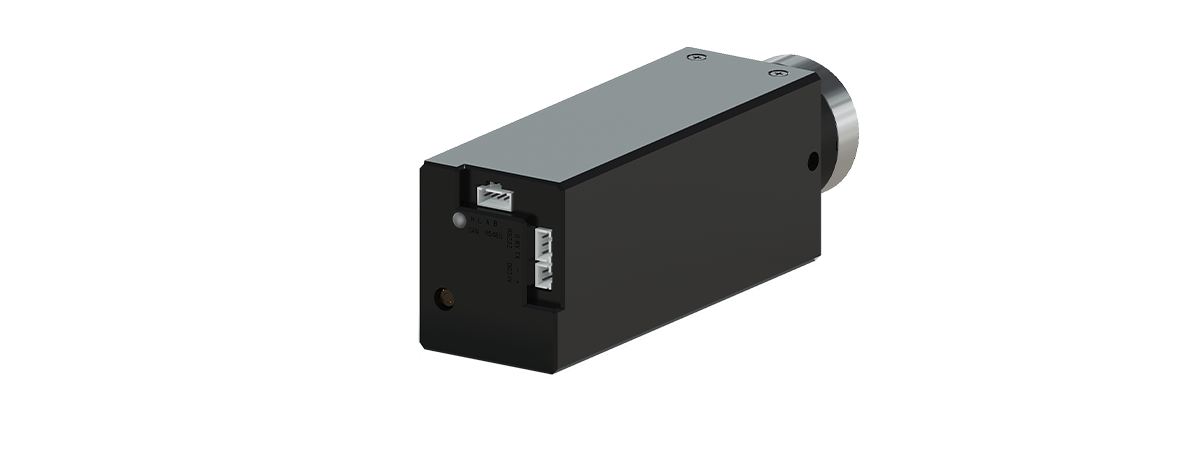

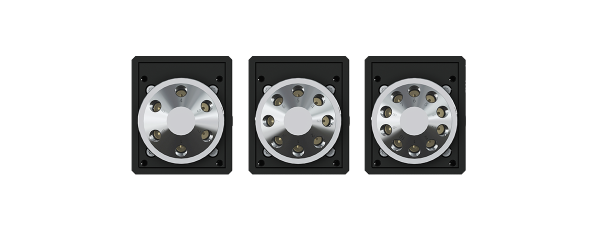

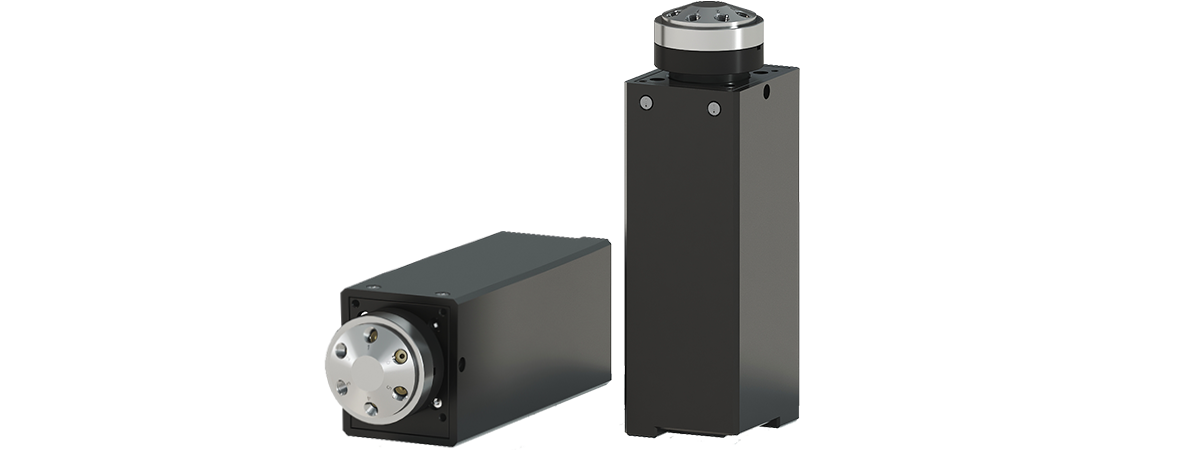

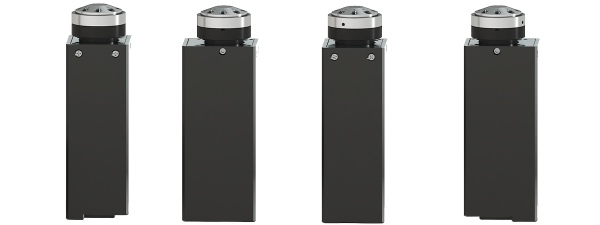

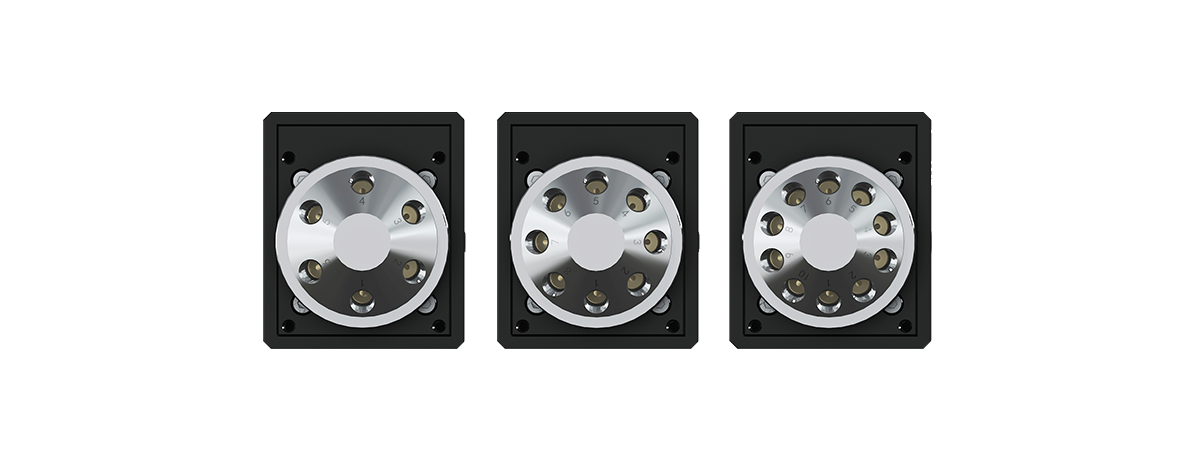

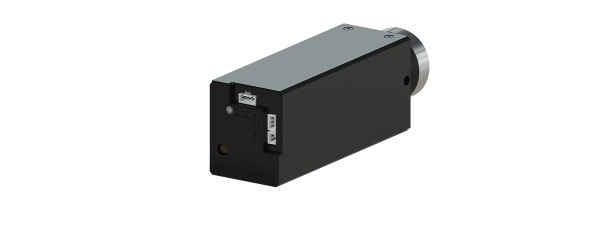

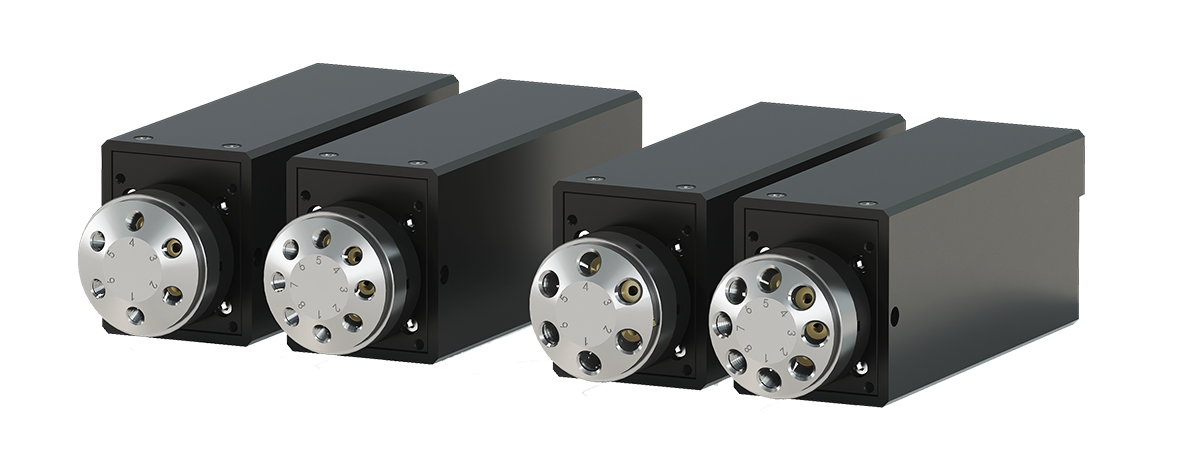

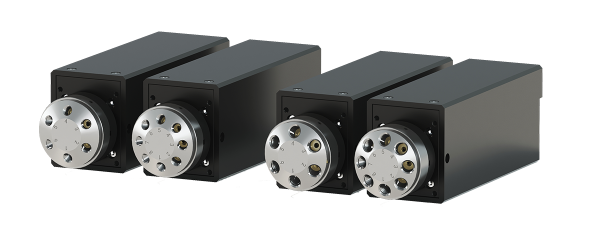

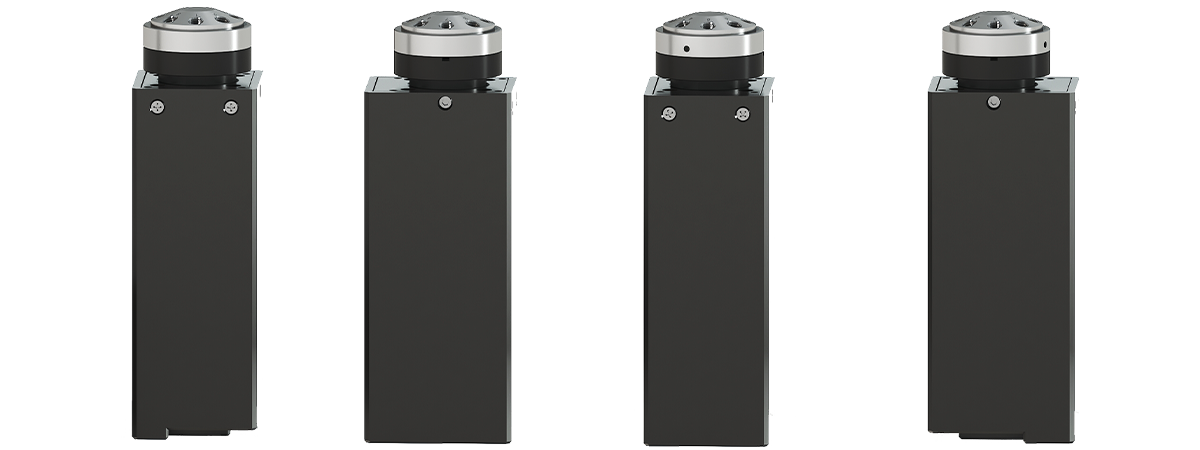

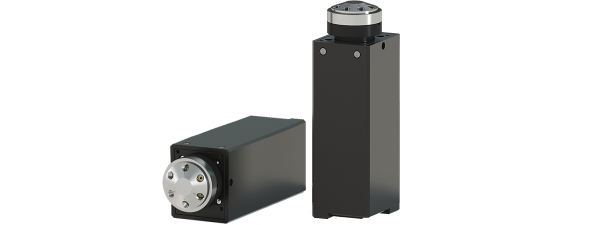

The SV07B-M20P/20SP Quantitative Valve is a high-performance multi-channel solution designed for advanced fluid metering in laboratory and automated systems. Featuring up to 20 ports, this intelligent valve enables accurate dosing and distribution of fluids across complex workflows such as sample processing, reagent delivery, and high-throughput screening.
Engineered for precision, the SV07B-M20P/20SP ensures consistent volumetric control with minimal cross-contamination, thanks to its low dead volume and chemically resistant materials. Its smart design supports seamless integration into automated platforms, making it a perfect choice for analytical labs, diagnostic equipment, and process automation.
| Valve head model | TC20P-B TC20SP-B | ||
| Number of channels | 6/8/10 Pass 6/8Pass | ||
| Flow to diameter | 1.5mm 2.0mm 3.0mm | ||
| Rotor trough volume | 27.8/21.9/19.1 μl 38.2/30.4 μl μl99/86.1 μl | ||
| Port to Port Volume | 55.8/49.9/47 μl 88/80.2 μl 212.9/199.1 μl | ||
| Interface thread (UNF) | 1/4-28 5/16-24, 1/4-28 | ||
| Touch material | Alumina ceramics | ||
| Pressure resistant | Air pressure: 0~0.6Mpa / Water pressure: 0~1.0Mpa | ||
| Valve head over-liquid temperature | Test temperature 100°C | ||
| Change the time of the whole circle. | 4S/circle (all valve heads) | ||
| Maximum driving force/twisting | 8N/m | ||
| Communication rate | RS232/RS485 Bus:
9600bps/19200bps/38400bps/57600bps/115200bps |
||
| Communication protocol | Custom Protocol, ASCII protocol, Modbus protocol (custom) | ||
| Applicable power supply | DC24V/3A | ||
| Working environment | Temperature: 0°C to +50°C Humidity: ≤80% without condensation | ||
| Weight of equipment | 0.95Kg | ||
