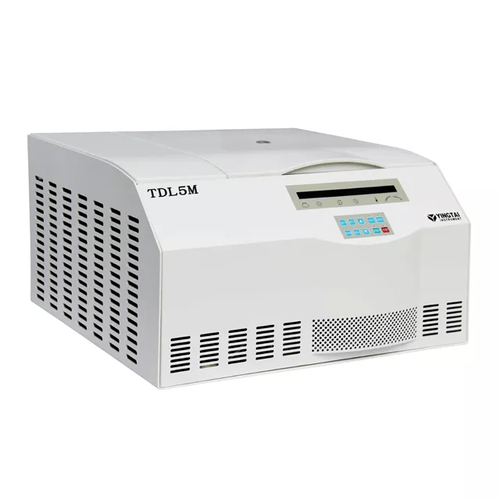

TDL5M Large Capacity Refrigerated Centrifuge

TDL5M Large Capacity Refrigerated Centrifuge

Add to wishlist
Compare

The TDL5M Large Capacity Refrigerated Centrifuge combines high throughput, precise temperature control, and robust engineering—ensuring your samples remain stable and accurately separated even in high-demand laboratory settings.

Compare
Ask for Price

 Features:

1.Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.

2.Imported compressors fluorine free,double cycle cooling,cold and hot alternating easily, free environment pollution and precise in temperature control.

3. Microprocessor control, digital display which indicates the speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.

4. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.

5. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

6. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.

7. There are several kinds of rotors for your choice, adapters can be designed by experimental requirements.

8. 3 tiers protection steel cover and get the ideal centrifugation result.

 TDL5M Technical Parameter：

Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×800ml( 4*450ml blood bags)
Time Range 0~99h59min
RPM/RCF Convert Yes
Noise (dB) ≤ 65
Temperature -20℃-40℃
Acc/Dec 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy ±1℃
Voltage(V/Hz) AC 220V/110V  50HZ/60HZ
Size (W x D x Hmm) 700×715×420mm
Net Weight(Kg) 125KG
Certificates CE,ISO & Calibration report are available

 Matched Rotors for TDL5M

Order No. Rotor Max Speed (rpm) Max Volume

(ml)

 Max. RCF（×g）
NO30671 Swing Rotor 4000 4×800ml

(Round Cup)

 3450
NO30696 Swing Rotor 4000 4×500ml

( Round Cup)

 3380
NO30679 Swing Rotor 4000 4×500ml

(Square Cup)

 3310
NO31494 Microplate Rotor



 4000 4×4×96 Well 2840
NO31491 4000 2×4×96 Well 2490
NO31376 4000 2×3×48 Well 2300
NO30690



 Swing Rotor 4000 4×30×7ml 3270
4×30×5ml 2890
4×18×10ml 3140
NO30607 Angle Rotor 5000 12×15ml 3080
NO30611 Angle Rotor 5000 6×50ml 2850
NO30640 Angle Rotor 5000 4×50ml 2520
NO30613 Angle Rotor 5000 4×100ml 2630
NO30639 Angle Rotor 5000 24×15ml 3500
NO30641 Angle Rotor 5000 12×50ml 3860
NO30614 Angle Rotor 5000 6×100ml 3130
NO30642 Angle Rotor 4000 12×100ml 2970

 Adapter for 800ml and 500ml bucket

 Volume

Cup

  5ml 7ml



 10ml



 15ml



 50ml


800ml

（Round Cup）

 23pcs/cup 23 19 14 5
500ml

（Round Cup）

 18pcs/cup 18 14 9 3
500ml

（Square Cup）

 20pcs/cup 20 16 12 5
