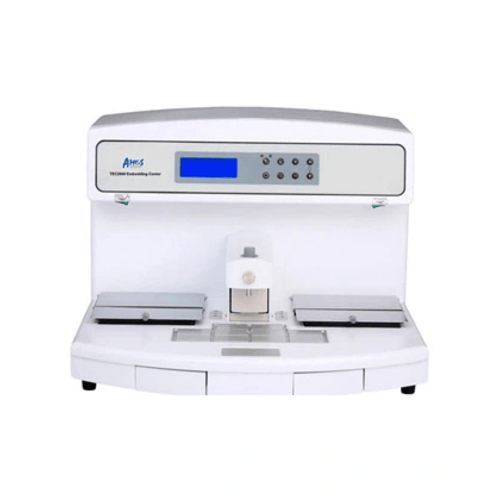

Description of TEC2800 Tissue Embedding Center
Embedding Dispensing Console
- Large paraffin tank capacity: 6 Liter
- The lamp brightness can be easily adjusted, according to ambient light brightness
- The large LCD screen is based on user-friendly design
- Automated “Wake up” function can be easily programmed
Working surface
- The extra large working surface allows the pathologist to process more samples at one time
- The paraffin flow can be precisely controlled by the finger touch pad or the foot pedal
- The paraffin flow rate can be controlled by the knob
- The “built-in” forceps heating station can heat 6 forceps simultaneously
- The information LCD screen shows current/setting temperature of paraffin tank, left/right tray, platform surface and forceps heating station respectively
- The peltier cold spot’s temperature range is from ambient to -5℃
Specification of TEC2800 Tissue Embedding Center
| Capacity | Paraffin reservoir | 6Lt | |||||
| Cassettes/molds tray | 1.4Lt | ||||||
| Working temperature(increments 1℃) | Paraffin Tank | from ambient to 90℃ | |||||
| Cassettes/molds tray | from ambient to 90℃ | ||||||
| Working table | from ambient to 90℃ | ||||||
| Peltier cold spot | from ambient to -5℃ | ||||||
| Forceps Holder | 65℃constant | ||||||
| Rated Power | 1200 W | ||||||
| Voltage/Frequency | AC 220V 50Hz or AC 110V 60Hz | ||||||
| Fuse | 220V/8A (110V/15A) | ||||||
| Dimensions | 560mm(Width)×640mm(Depth)×400mm(Height) | ||||||
| Weight | about 26Kg | ||||||
