Key Features
1. Brushless motor, no pollution, free-maintenance.
2. Microprocessor control, LCD display touch screen which indicates the speed, time, RCF in operation, 10 kinds of brake setting, operate simply. 100 programs can be stored.
3. Electric lid lock, super speed, imbalance protection. The centrifuge body is made of high quality steel, stainless steel chamber, safe and reliable.
4. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
5. 3 tiers protection steel cover and get the ideal centrifugation result

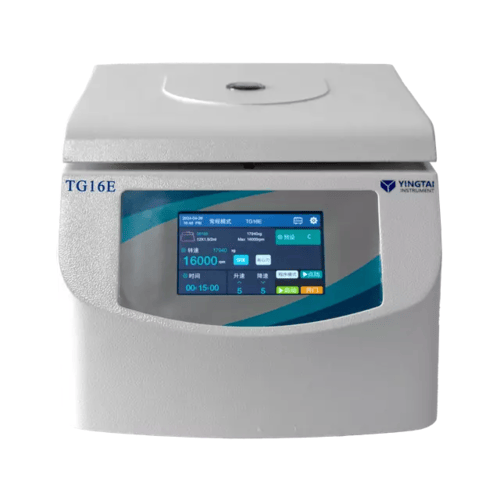

TG16E Technical Parameter：
| Max. Speed |
16000rpm |
| Max. RCF |
19040×g |
| Max. Capacity |
6×10ml |
| Time Range |
0~99h59min59sec |
| RPM/RCF Convert |
Yes |
| Noise (dB) |
≤ 65 |
| Acc/Dec |
10 Kinds |
| Speed Accuracy |
±20r/min |
| Voltage(V/Hz) |
AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) |
370×290×215mm |
| Net Weight(Kg) |
16KG |
| Certificates |
CE,ISO & Calibration report are available |
Matched Rotors for TG16E
| Order No |
Rotor |
Max speed (rpm) |
Max Volume(ml) |
Max RCF (g) |
| 16E-1 |
Angle rotor |
14000 |
4×8PCR |
12070 |
| 16E-2 |
Angle Rotor |
16000 |
12×1.5/2ml |
17940 |
| 16E-3 |
Angle Rotor |
14000 |
24×1.5/2ml |
17950 |
| 16E-4 |
Angle Rotor |
16000 |
10×5ml |
17880 |
| 16E-5 |
Angle Rotor |
13000 |
6×10ml |
14190 |
| 16E-6 |
Angle Rotor |
12000 |
24 pieces capillary vessel |
15800 |
| 16E-7 |
Angle Rotor |
16000 |
40×0.2ml |
19040 |
| 16E-8 |
Angle Rotor |
13000 |
40×0.5ml |
17210 |
| 16E-9 |
Angle Rotor |
13000 |
30×0.5ml |
13900 |
