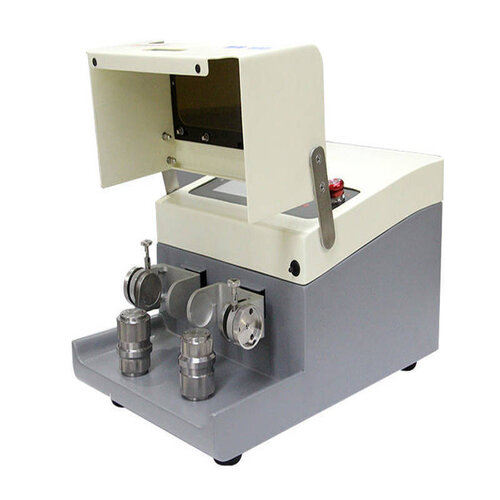

Tissue Grinder-horizontal


The Tissue Grinder-Horizontal (MT100 Ball Mill) is a high-throughput solution for finely grinding and homogenizing a wide variety of sample types—including soft tissues, hard materials, and fibrous samples. It supports dual-sample processing (0.2–20 ml each) and can simultaneously handle up to 92 samples for tasks like cell disruption and DNA/RNA extraction, all while maintaining low heat for room temperature operation.

Compare

The Tissue Grinder-horizontal is a product specially developed to handle a small number of laboratory samples. It is not only suitable for fine powder crushing and fine grinding of hard, medium hard and brittle samples, but also for soft, elastic, fiber material and so on. mt100 ball mill can crush and grind many materials including fiber tissue, bone, hair, chemicals, pharmaceuticals, minerals, ores, alloys, glass, ceramics, soil, sludge, grain particles, plastics, textiles. For most materials, it takes only a few seconds to achieve the purpose of grinding, mixing and homogenizing the sample. The mt100 ball mill can grind, mix and homogenize two 0.2-20 ml samples at the same time, and can operate up to 10-92 samples at the same time for cell fragmentation. because of the efficient operation of the mt100 high-throughput tissue grinder, the sample can be processed in a very short time without producing a significant heating up. So most materials can be ground and mixed at room temperature. in addition, the mt100 ball mill is especially suitable for biological cell wall breaking and dna/rna extraction.

Technical Specification of Tissue Grinder-horizontal

Model MM100
Feed material Hard, medium hard, soft, elastic and fiber samples
Application Crushing, grinding, mixing, homogenizing
Material feed size ≤8mm
Final fineness: About 5um
The capacity 0.5/2ml*48*2
frequency of vibration 60-1800 r/min ,Continuous adjustable, digital display
Material of grinding tools Hard steel, stainless steel, tungsten carbide, agate, zirconia, Teflon
Grinding Dry, wet, low-temperature, high-throughput
Final fineness 5-10UM
Batch size / feed quantity max ≤2x20ML
Grinding jar quantity 2
Grinding jar size 0.2ml,1.2ml,1.5ml,2.0ml,5.0ml,50ml,and 96 hole deep orifice plates
Number of micropores treated 4×2、5×2、6×2、10×2、24×2、96×2
Voltage: 200-240V, 50-60 Hz
Power of motor 250W
Grinding time 1-3min
Setting of vibrational frequency 60-1800RPM
Setting of grinding time 1s-99min 59s
Dimension 320 x 240 x 450 mm
Net weight 26 kg

*Depending on sample type and instrument configuration
