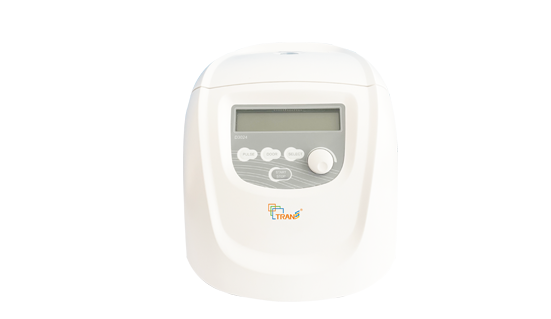

Key Features of TSC-24R Desktop High-Speed Microcentrifuge
-
High-Speed Performance: Up to 15,000 rpm and 21,380 × g for efficient sample separation.
-
Versatile Capacity: Supports 24 × 1.5/2 mL tubes, 36 × 0.2/0.5 mL tubes, 12 × 5 mL tubes, and 4 PCR-8 strips.
-
Temperature Control: Adjustable from -20°C to 40°C for temperature-sensitive protocols.
-
User-Friendly Interface: Speed/acceleration conversion, instantaneous operation, and process display with sound prompts.
-
Safety Mechanisms: Double door lock, overspeed, and overtemperature detection.
-
Efficient Cooling: Double-air cooling design for low rotor temperature rise.
-
Biosafety: Three-layer sealed rotor to prevent microbial contamination.
-
Durable Rotor: High-strength aluminum alloy rotor suitable for 121°C disinfection.
-
Dynamic Balance Detection: Ensures stable operation.
-
Programmable: 9 customized program memories for routine protocols.
Characteristics of TSC-24R Desktop High-Speed Microcentrifuge
• Energy Saving – Double-air cooling design, low rotor temperature rise.
• Biosafety – Three layers of sealed rotor to avoid microbial contamination caused by sample leakage.
• Free maintenance for the brushless motor.
• Operation Safety – Interlocked door design, detection of over-speed and over-temperature
• High-strength aluminum alloy rotor. Suitable for 121°C disinfection.
• 5 rotor selections, adapters for a wide range of volumes
• 0.2 mL, 0.5 mL, 1.5 mL, 2 mL, and 5 mL centrifuge tubes and PCR strips of 8 tubes.
Specifications of TSC-24R Desktop High-Speed Microcentrifuge
| Category | Specification |
|---|---|
| Model | TSC-24R |
| Maximum Speed | 15,000 × g (200–15,000 rpm), step size: 100 rpm |
| Maximum RCF (Centrifugal Force) | 21,380 × g, step length: 10 × g |
| Capacity | – 1.5/2 mL × 24 (standard) – 0.2/0.5 mL × 36 – PCR-8 strips × 4 – 5 mL × 12 – 5 mL × 18 |
| Temperature Range | – |
| Timer | 30 sec – 99 min, HOLD (continuous operation) |
| Lid Opening/Closing Time | 25 seconds ↑ / 25 seconds ↓ |
| Motor Type | DC brushless motor |
| Safety Features | Double door lock, overspeed & overtemperature detection |
| Power Supply | Single-phase,AC200V-400V, 50Hz/60Hz，
5A,AC100V-120V, 50Hz/60Hz, 8A |
| Dimensions (L × W × H) | 364 × 280 × 266 mm |
| Weight | -12 kg |
| Additional Functions | – Speed/acceleration conversion – Instantaneous operation – Process display – Sound prompt |
