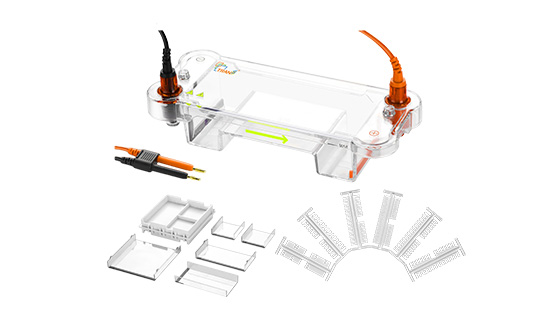

Features of TSE-N Multipurpose Horizontal Electrophoresis Unit
- Suitable for PCR electrophoresis with a 1mm 27-tooth comb, accommodating 108 samples (including markers) in one run.
- Convenient use with various tray combinations.
- High-temperature resistant gel trays, no deformation at 100°C; no need to dry agarose before casting.
- Embedded design for active electrodes. No need for rubber sealing rings and guaranteed leak-free operation.
Specifications of TSE-N Multipurpose Horizontal Electrophoresis Unit
| Parameter | Specification |
|---|---|
| Model | TSE-N |
| Dimensions (L × W × H) | 300 × 155 × 100 mm |
| Gel Area (W × L) | 130 × 130 mm, 130 × 65 mm, 65 × 130 mm, 65 × 65 mm |
| Combs – Quantity | 9 double-sided combs |
| Combs – Specifications | |
| – 0.75 mm thickness | 7+7 teeth / 14 teeth, 9+9 teeth / 19 teeth |
| – 1.0 mm thickness | 12+12 teeth / 27 teeth |
| – 1.5 mm thickness | 7+7 teeth / 14 teeth, 9+9 teeth / 19 teeth |
| – 2.0 mm thickness | 3+2 teeth / 3+3 teeth |
| Maximum Buffer Volume | 1000 mL |
| Net Weight | 1.5 kg |
| Maximum Voltage | 200 V |
| Maximum Power | 40 W |
| Maximum Buffer Temperature | 40°C |
| Power Supply Compatibility | TRANSGEN Universal Electrophoresis Power Supply (TSE-E) (optional) |
