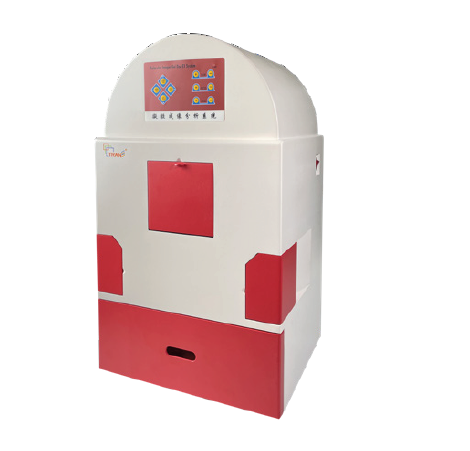

Product Features of TSI-100 Gel Imaging System
• High sensitivity, high-resolution digital imaging system.
• Equipped with white and ultraviolet light sources, capable of digitizing images of silver-stained, fluorescent, gel, Coomassie blue, and nucleic acid-stained samples.
• Compatible with gel analysis software for various image analyses.
• Multi-purpose dark box eliminates the need for a darkroom setup in the laboratory and allows for ultraviolet light transmission, white light transmission, and ultraviolet reflection photography, minimizing potential harm from ultraviolet light exposure to humans.
• Uniform illumination with a maximum imaging area of 200 x 250 mm.
Specifications of TSI-100 Gel Imaging System
| Parameter | Specification |
|---|---|
| Model | TSI-100 |
| Dimensions (L × W × H) | 440 × 430 × 770 mm |
| CCD Resolution (H × V) | 2592 × 1944 |
| Pixel Density | 8 bits |
| Auto Zoom Lens | C-mount, f/1.2, 8–48 mm |
| Illumination Modes | Transmitted Ultraviolet Light, Transmitted White Light, Episcopic White Light |
| Excitation Light Sources | 300 nm, White Light (Standard), 254 nm, 365 nm |
| Filter Positions | 1 |
| Chemiluminescence | None |
| Transmitted Area | 25 × 20 cm |
| Operating System Compatibility | Windows 2000 / XP / WIN7 |
| Weight | 20 kg |
