• Elegant appearance, compact structure, and smooth lines.
• 7″ TFT high-definition true color touchscreen for complete control of the experimental process.
• Excellent temperature uniformity to ensure reliable experimental results.
• Convenient module replacement without the need for tools.
• Large storage space, programs can be downloaded limitlessly via a USB drive.
Applications
The TSP-100 is versatile and can be employed in a variety of molecular biology workflows, including:
-
Gene expression analysis
-
Genotyping
-
Cloning
-
Mutagenesis
-
PCR optimization using gradient functions

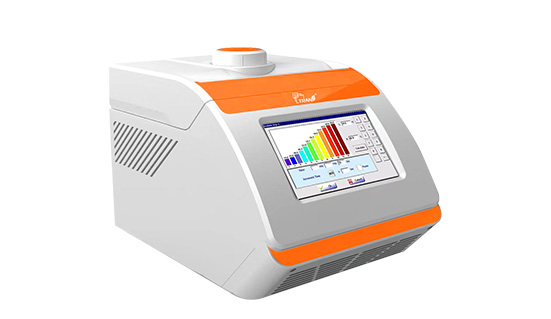

TSP-100 Thermal Cycler Specifications
| Category | Specification |
|---|---|
| Voltage Range | Global power 100–240 V, 50–60 Hz |
| Maximum Power | 600 W |
| Dimensions (L × W × H) | 362 × 256 × 255 mm |
| Weight | 7.3 kg |
| Module Options | – 9677 Module: 96 × 0.2 mL + 77 × 0.5 mL – 96 Module: 96 × 0.2 mL – Multi-functional Module (includes in-situ carrier with 6 units of 4×4 wells, 0.2 mL each) |
| Temperature Control | Advanced MARLOW semiconductor chips, cycling durability ≥1 million cycles |
| Display | 7″ TFT high-definition full-touch LCD, real-time program curve display |
| Language Options | Chinese / English |
| USB & Connectivity | 2 USB ports, 1 LAN port, unlimited program upgrades/downloads via USB |
| Air Duct Design | Forward air intake, rear exhaust – allows side-by-side installation |
Temperature Performance
| Parameter | Specification |
|---|---|
| Sample Stage Temp. Range | 0°C – 105°C |
| Max. Heating Rate | 5°C/s |
| Max. Cooling Rate | 4°C/s |
| Temperature Uniformity | ≤ ±0.2°C |
| Temperature Accuracy | ≤ ±0.1°C |
| Display Resolution | 0.1°C |
| Control Method | Analog tube + sample stage |
| Change Rate | 0.1°C – 4.0°C/s |
Gradient Function
| Parameter | Specification |
|---|---|
| Gradient Temp. Range | 30°C – 105°C |
| Gradient Temp. Uniformity | ≤ ±0.2°C |
| Gradient Temp. Accuracy | ≤ ±0.1°C |
| Adjacent Sub-Platform Temp. Difference | 1°C – 40°C |
| Gradient Point Distribution | 12 columns |
Heated Lid
| Parameter | Specification |
|---|---|
| Heated Lid Temp. Range | 30°C – 112°C (adjustable) |
| Heated Lid Height | Infinitely adjustable for various tube and plate types |
| Lid Mechanism | Automatic open/close with overpressure sound prompt protection |
| Auto Close Feature | Heated lid auto-closes when program ends or stage cools below threshold |
Software & Functionality
| Parameter | Specification |
|---|---|
| Program Storage | Up to 10,000 programs internally, unlimited via USB |
| Max Program Steps | 30 steps, supports multiple nested loops |
| Max Cycles | Up to 100 (up to 10,000 with nested loops) |
| Time Increment/Decrement | 1 – 600 s (ideal for Long PCR) |
| Temp. Increment/Decrement | 0.1°C – 10.0°C (suitable for Touchdown PCR) |
| Power-Off Data Protection | Yes |
| Tm Calculation | Yes – based on the input base sequence |
| Low-Temperature Sample Storage | Yes |
| Real-Time Temperature Curve Display | Yes, for both the heated lid and the sample |
| On-Screen Run Report | Full report with detailed step tracking |
