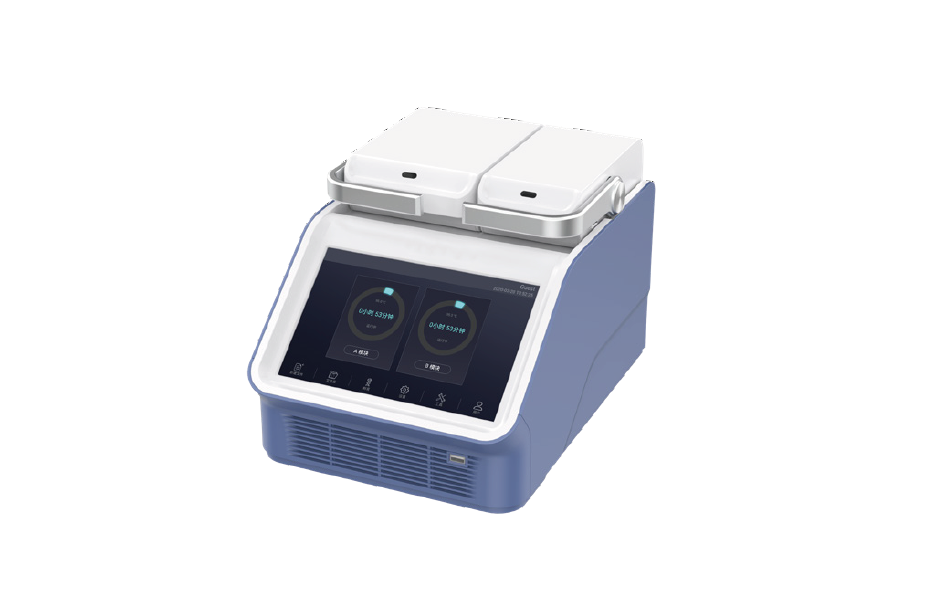

TSP-200 Super Gradient PCR Instrument


The TSP-200 features six individual sample stages with independently adjustable temperature points, surpassing traditional gradient capabilities. This design ensures better temperature uniformity, reducing edge effects and enhancing the reliability of PCR results. The maximum temperature difference between adjacent sample stages can reach 25°C, allowing for extensive optimization of annealing temperatures. Utilizing semiconductor chip technology, the TSP-200 achieves a rapid temperature ramp rate of up to 5.5°C per second. Additionally, it supports unlimited program downloads and software upgrades via USB drive, providing flexibility and ease of use.

Compare

The TSP-200 Super Gradient PCR Instrument offers six independently controlled temperature zones, rapid heating, and flexible programming, making it an ideal solution for precise and efficient DNA amplification in modern molecular biology laboratories.



Features of TSP-200 Super Gradient PCR Instrument

  • 6 individual sample stages with freely adjustable temperature points, superior to traditional gradients.
  • Better temperature uniformity, reducing edge effects on the sample stage.
  • The maximum temperature difference between adjacent sample stages can reach 25°C.
  • Semiconductor chip technology has the fastest temperature ramp rate of 5.5°C/second.
  • Unlimited program downloads and software upgrades via USB drive.

Applications of  TSP-200 Super Gradient PCR Instrument

The TSP-200 is suitable for a wide range of molecular biology applications, including:

  • Standard PCR

  • Gradient PCR for primer optimization

  • Touchdown PCR

  • Long-range PCR

  • High-throughput DNA amplification



TSP-200 Thermal Cycler Specifications

Category Specification
Voltage Range Global power 100–240 V, 50–60 Hz
Maximum Power 600 W
Dimensions (L × W × H) 362 × 256 × 255 mm
Weight 8 kg
Module Options – 9677 Module: 96 × 0.2 mL + 77 × 0.5 mL
– 96 Module: 96 × 0.2 mL
– Multi-functional Module (6 units of 4×4 wells, 0.2 mL each)
Temperature Control Advanced MARLOW semiconductor chips with ≥1 million cycling durability
Display 7″ TFT full-touch high-definition LCD with real-time program curve display
Language Options Chinese / English
USB & Connectivity 2 USB ports, 1 LAN port; unlimited program downloads and system upgrades
Air Duct Design Forward air intake, rear exhaust – allows tight side-by-side instrument placement

Temperature Performance

Parameter Specification
Sample Stage Temp. Range 0°C – 105°C
Max. Heating Rate 5.5°C/s
Max. Cooling Rate 4.5°C/s
Temperature Uniformity ≤ ±0.15°C
Temperature Accuracy ≤ ±0.1°C
Display Resolution 0.1°C
Control Method Analog tube + sample stage mode
Change Rate 0.1°C – 4.0°C/s

Gradient Function

Parameter Specification
Gradient Temp. Range 0°C – 105°C
Gradient Temp. Uniformity ≤ ±0.2°C
Gradient Temp. Accuracy ≤ ±0.15°C
Adjacent Sub-Platform Temp. Difference 0.1°C – 25°C
Gradient Point Distribution 6 independent sub-platforms with individual temperature settings

Heated Lid Features

Parameter Specification
Heated Lid Temp. Range 30°C – 112°C (user-adjustable)
Heated Lid Height Infinitely adjustable to fit various tubes and plates
Lid Mechanism Automatic opening/closing with overpressure sound alert
Auto Close Feature The lid closes automatically at the end of the program or when the platform cools below the set point

Software & Program Features

Parameter Specification
Program Storage Up to 15,000 programs internally; unlimited via USB
Max Program Steps 30 steps, supports double nested loops
Max Cycles Standard: up to 100
Double nested loops: up to 10,000 cycles
Time Increment/Decrement 1 – 600 s (supports Long PCR)
Temp. Increment/Decrement 0.1°C – 10.0°C (supports Touchdown PCR)
Power-Off Data Protection Yes
Tm Calculation Automatic, based on user-input base sequences
Low-Temperature Sample Storage Yes
Real-Time Temperature Curve Display Yes, for both the heated lid and the sample stage
On-Screen Run Report Detailed run log with full temperature/time tracking
