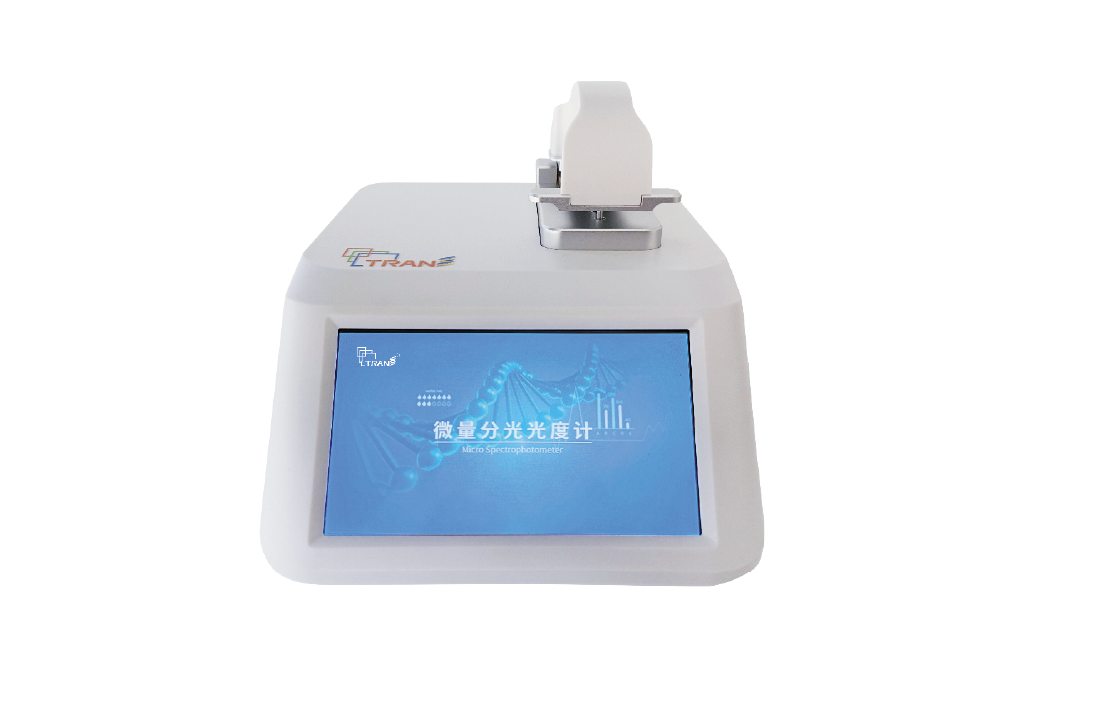

Product characteristics of TSS-200 Ultra Micro Spectrophotometer
•Intelligent Android operating system with a 7-inch capacitive touch screen
•Cuvette slot for culture medium detection
•Small sample volume ( 0.5- 2 μL )
•Direct sample addition, dilution-free. 2-6 s for results. 50 times than a conventional UV-Visible
spectrophotometer
• Lifetime up to 10 years
•Stabilized, fast USB data output
•No need for computer connection
•Multiple formatting includes Excel and JPG image export
•High precision, accuracy of optical path to 0.001mm
•Automatic detection after arm closure
•Optional printer
Product Specifications of TSS-200 Ultra Micro Spectrophotometer
| Category | Specification |
|---|---|
| Model | TSS-200 |
| Sample Volume | 0.5 μL – 2 μL (Recommended: 2 μL) |
| Optical Path Lengths | 0.05 mm, 0.2 mm, 1.0 mm, 1.2 mm |
| Light Source / Lifetime | Flashing xenon lamp / >10⁹ flickers |
| Detector Type | 2048-cell linear CMOS array |
| Wavelength Coverage | 180 – 910 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Resolution | ≤1.5 nm (FWHM @ Hg 253.7 nm) |
| Absorbance Precision | 0.002 Abs (1 mm path) |
| Absorbance Accuracy | ±1% (at 7.332 Abs, 260 nm) |
| Absorbance Range | 0.02 – 300 (at 260 nm, 10 mm path equivalent) |
| Concentration Range | 2 – 15,000 ng/μL dsDNA |
| Detection Time | < 6 seconds |
| OD600 Absorbance Range | 0 – 4.000 Abs |
| Absorbance Stability | [0, 3) ≤ 0.5%, [3, 4) ≤ 1.5% |
| Absorbance Repeatability | [0, 3) ≤ 0.5%, [3, 4) ≤ 1.5% |
| Absorbance Accuracy (OD600) | [0, 2) ≤ 0.005A, [2, 3) ≤ 1%, [3, 4) ≤ 2% |
| Power Supply | DC 12V, 4A |
| Power Consumption | 48 W |
| Dimensions (W × D × H) | 270 × 210 × 196 mm |
| Weight | 3.5 kg |
| Operating System | Android OS, 7-inch capacitive touch screen |
| Special Features | – Cuvette slot for culture medium – Direct sample addition, no dilution – Auto detection after arm closure – 2–6s result time (50x faster than conventional UV-Vis) – USB data output, no PC required – Excel & JPG export – Optical path accuracy: 0.001 mm – Optional printer |
| Estimated Lifespan | Up to 10 years |
