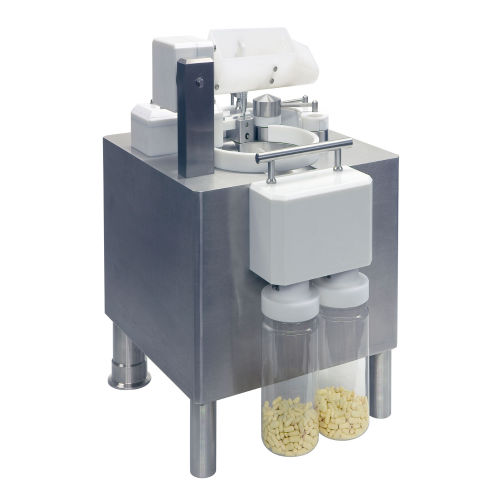

UTS-IP65 ? Washable tablet testing system for isolators


The UTS-IP65 is an automatic tablet testing system specifically designed for operation within isolators or washing bays, featuring a pressure equalization function to maintain optimal performance in controlled environments. This system is an adaptation of the UTS IP-LR model, with enhancements tailored for wash-down capabilities and external operation.

Key Features:

  • External Operation: The UTS-IP65 is designed for external control, eliminating the need for an operating display on the unit itself, which enhances safety and simplifies operation within isolator environments.

  • Encapsulated Weighing Unit: The system features an encapsulated weighing mechanism, providing protection against moisture and contaminants, thereby ensuring consistent and accurate measurements even during wash-down procedures.

  • Wash-Down Capability: Engineered for thorough cleaning, the UTS-IP65 supports wash-down procedures, making it suitable for environments requiring stringent hygiene standards.

  • Comprehensive Testing Parameters: The system is capable of measuring multiple tablet attributes, including weight, thickness, diameter or length, and hardness, accommodating various tablet shapes and sizes.

  • Easy Maintenance: All components requiring cleaning can be dismantled without the use of tools, facilitating efficient maintenance and reducing downtime.

Compare

UTS-IP65

The UTS-IP65 is designed for operation in isolators or washing bays, and features a pressure equalization function. The UTS IP65 is largely identical to the UTS IP-LR, but differs in the following features:

  • External operation (no operating display on the unit)
  • Encapsulated weighing unit
  • Wash down possible



Functionality

In the feeder chute, the tablets are automatically de-dusted, separated and conveyed to the test area. Here, a rake system positions the tablets and transports them to the measuring stations.

The positioning method upstream of the hardness tester enables almost any shape of tablet to be ideally positioned for diameter and hardness measurements.

The tablet stopper, pusher and transport segment can be ideally adapted for each product. During product changes, these parts can be replaced in just a few easy steps.
