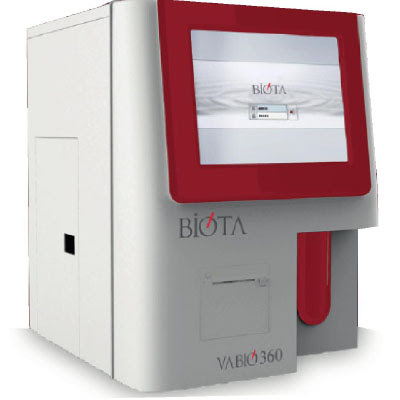

VABIO360 Auto Hematology Analyzer is a bench top system for the low and medium size laboratories that prioritizes high quality and reliable results. We understand the specific needs of end users, and use them as the foundation for our new solution VABIO360.
VABIO360 is remarkably cost effective with its compact, economical and user friendly design.
It uses only 9 ul of blood to have a 21 parameter result within 1 minute. Customization on reference range, 10.4 inch LCD touch screen, bi-directional LIS connection are just some of the advanced features of the analyzer which provides laboratory confort and productivity
General Properties of VABIO 360 Hematology Analyzer
- 3-part differentiation of WBC, 21 parameters and 3 histograms
- Combination of pulse baseline tracking, digital sheath flow, waveform discrimination and intelligent floating threshold tecnologies
- Electrical impedance method (WBC/RBC/PLT) and cyanide free (HGB) method
- Up to 60samples per hour
- Whole blood and prediluted counting modes
- Excellent repeatability and wider linearity range
- Reliable alarm system with customized function
- More user friendly and visible by 10.4 inch touchscreen
- Maintenance-free syringe and no need flushing fluid
- Up to 50000 sample results, including histogram and partient information can be stored
- Both thermal printer and USB external printer are supported
- Bi-directional LIS connection
Technical Specifications of VABIO 360 Hematology Analyzer
Principles
- Electrical Impedance method for WBC, RBC, PLT counting
- Cyanide-free reagent for Hemoglobin test
Parameters
- WBC, Lym#,Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR andP-LCC
- 3 histograms, alarm for abnormal erythrocytes, leucocytes, and platelet
Throughput
- Up to 60 samples per hour
Sample Volume
- Whole Blood: min. 9ul
- Prediluted: min. 9ul
Data Storage Capacity
- Up to 50,000 results including numeric and graphical information
Quality Control System
- L-J andX-B
Communication
- Four USB port and Bi-directional LIS
Operating Environment
- Temperature: 10oC-30oC
- Humidity: ≤ 85%
- Air Pressure: 70-106 kPa
Power Requirement
- A.C. 100-240V ≤300VA 50/60Hz
Dimension and Weight
- 410mm(L) × 353mm(W) × 471mm(H)
- Weight: ≤ 25kg
