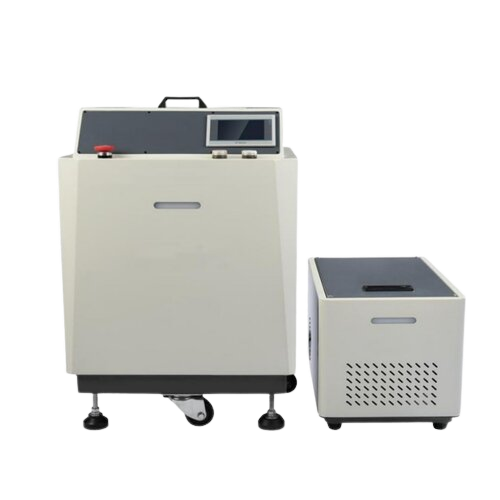

The Vacuum Centaifugal Defoaming Machine can handle the mixing and deaerating of various materials with various viscosities and volumes. The materials are homogenized in a sealed negative pressure space without worrying about foreign matter being mixed in. The materials are pushed to the side wall of the container by the centrifugal force of the revolution, and the mixing is achieved due to the shear force generated between the side wall of the rotating container and the materials. 80 liters/minute, about -99kpa (relative to 0 meters above sea level), the combination of the revolution speed and the rotation speed, combined with the negative pressure system, can achieve the optimal mixing and defoaming of the materials in a short time.
Technical Specification
| Model | MT-P500 | MT-P1400 | MT-P3000 | MT-P8000 |
| Standard container | 500mL*1 | 700mL*2 | 1500mL*2 | 4000mL*2 HDPE |
| Maximum speed | 3000rpm | 2800rpm | 2500rpm | 1200rpm |
| Maximum throughput | 200mL*1 | 350mL*2 | 750mL*2 | 2000mL*2 |
| Syringe handling capacity | 5CC-10CC | 5CC-50CC | 5CC-960CC | 5CC-960CC |
| Weight | 90kg | 180kg | 240kg | 700kg |
| Dimension | 490*490*762（mm) | 640*640*810（mm) | 700*700*960（mm) | 1100*1000*950（mm） |
| Revolution | Fixed speed ratio 1:0.8 | (1:0-1:2) Revolution rotation ratio adjustable | ||
| Power | Maximum power consumption 1.7kw | Maximum power consumption 3.7kw | Maximum power consumption 12kw | |
| Voltage | AC220-240V | AC380V three-phase | ||
| Vacuum pump power | 750W | |||
| Vacuum pumping speed | 20m³/H | |||
| Vacuum degree | 0.1Kpa | |||
| Transfer method | Silent synchronous belt drive | |||
| Control System | Touch screen | |||
| Safety protection | Excessive vibration alarm Work completion alarm prompt、Emergency stop key、Upper cover suppor 、Upper cover safety lock | |||
