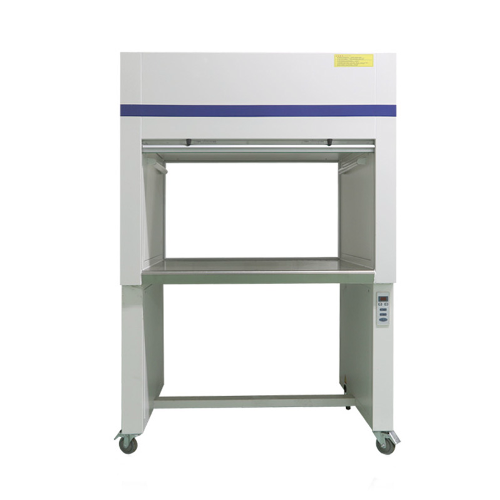

A Vertical Flow Clean Bench is a type of controlled environment used primarily in laboratory and industrial settings to maintain a contamination-free workspace. Like the horizontal flow clean bench, the purpose of a vertical flow clean bench is to provide a sterile or clean environment by filtering the air and preventing contaminants from entering the workspace. However, the key difference is that the airflow is vertical, coming from the top down onto the work surface.
Technical Specifications of Vertical Flow Clean Bench
| Model | CB-VA | CB-VB | ||
|---|---|---|---|---|
| Airflow Type | Vertical Air Flow | |||
| Air Cleanliness Class | ISO5 | |||
| Air Flow | 0.25-0.45m/s | |||
| Noise | ≤62 dB (A) | |||
| Illuminance | ≥ 350 lux | |||
| Power Supply | AC 220V, 50Hz | |||
| Power | 250W | 500W | 250W | 500W |
| External Size (W*D*H)mm | 840*825*1625 | 1300*825*1625 | 1035*735*1560 | 1500*735*1560 |
| Working Area (W*D*H)mm | 680*650*570 | 1140*650*570 | 815*700*500 | 1340*700*500 |
| HEPA Filter Size&Qty. | 760*610*50&1 | 760*610*50&2 | 600*600*70&1 | 600*600*70&2 |
| Depositing Bacterial Concentration | ≤0.5cfu/plate in 0.5h | |||
| Quantity of Operator | Single-Person | Double-Person | Single-Person | Double-Person |
