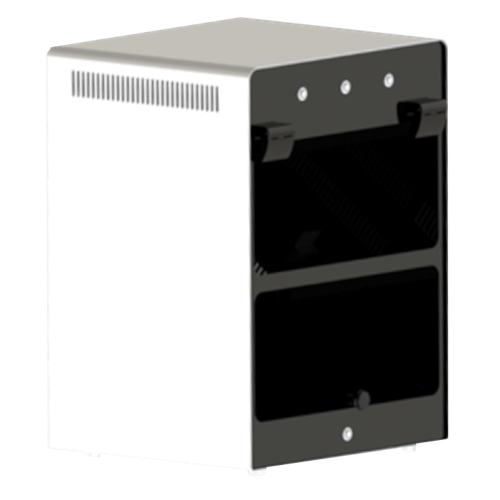

The new Visualizer HP-UVis NxG combines four UV-lamps for 254/310/345/365 nm in one unit! Two inclined plate tables with non-slip surface are positioned one above the other. Incident stray light is minimized by the cabinet which is closed on 3 sides so that an observation is possible without the need of a darkroom. Due to the use of a high pressure mercury vapour discharge lamp, the HP-UVIS NxG provides a very high radiation intensity at 365 nm for fluorescence evaluation of thin-layer chromatograms. In this respect, it is superior to all analyzing lamps with cold light tubes. Fluorescent substances can still be detected in nanogram quantities. One 8 W low pressure tube together with a selected filter guarantee an optimum contrast at 254 nm. The new HP-UVIS NxG is equipped with a UV protection shield.
Technical Specification
Detection area
- 200 x 200 mm
Dimensions (W x H x D)
- 325 x 480 x 290 mm
Weight
- 11.5 kg
