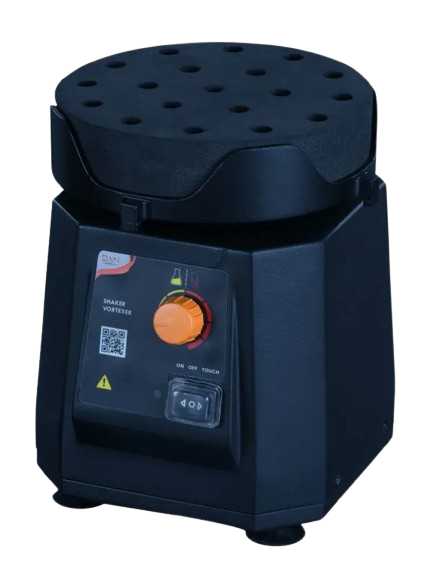

The Vortex Orbital Shaker HD** is a heavy-duty, high-capacity orbital shaker engineered for intensive laboratory mixing tasks. Designed to handle a variety of containers—including flasks, beakers, petri dishes, microplates, and tubes—this powerful orbital shaker delivers uniform, reproducible, and high-speed shaking performance. It is ideal for use in cell culture, molecular biology, microbiology, and pharmaceutical laboratories. The unit features a robust brushless DC motor and digital control system that allow for precise speed and time adjustments, ensuring optimal mixing results across a wide range of applications. The heavy-duty (HD) construction enhances durability and long-term stability during continuous or high-speed operations. A large platform with anti-slip mat or optional attachments accommodates various vessel types. The orbital shaking motion ensures efficient mixing without frothing or spilling. The unit is designed with intuitive digital interface, programmable timer, and safety features like overload protection, non-slip feet, and platform locking mechanisms.

Product Features of Vortex Orbital Shaker HD

  • Sturdy metal die cast casing
  • Short-time operation activated by pressing attachment/top
  • Wide speed range, variable
  • Suitable for continuous operation also with low self heating thanks to self ventilation of motor
  • Different applications (3 interchageable attachment and 7 inserts (e.g. tubes, microtiter plate, conical flasks 250 ml etc.), please order separately)
  • Attachments securely click onto appliance in any position
  • Special strap (ensure easy handling of round/conical flasks
  • Stable at high speeds thanks to special feet (sillicon base with ultra high vibration damping)



Technical Specification:

Type of movement Orbital
Shaking stroke/Orbit 4 mm
Permissible shaking weight(incl. attachment) 0.4 kg
Motor rating input 58 W
Motor rating output 10 W
Permissible ON time 100%
Speed min (adjustable) 500 rpm
Speed range 0 – 2500 rpm
Speed display none
Operating mode continuous operation
Touch function yes
Working with microtiter plates yes
Number of microtiter plates 1
Dimensions (W x H x D) 146 x 144 x 157 mm
Weight 4 kg Approx
Permissible ambient temperature 5 – 40 °C
Permissible relative Humidity 80%
Protection class according to DIN EN 60529 IP 21
Power input 60 W
