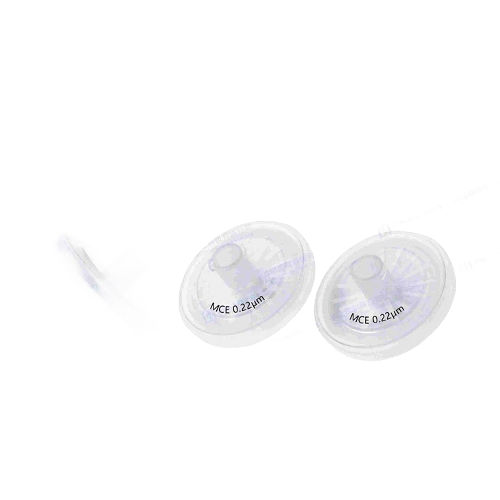

Welded MCE Sterile Syringe Filter

The Welded MCE Sterile Syringe Filter is a high-performance filtration device designed for reliable sample purification in laboratory and industrial applications.

Key Features:

Membrane Material: Utilizes Mixed Cellulose Ester (MCE), known for its uniform pore structure and high porosity, ensuring efficient filtration with high flow rates.
Welded Construction: Employs advanced ultrasonic welding technology to securely bond the filter membrane with the polypropylene housing, eliminating the need for adhesives and reducing the risk of leakage.
Sterility: Available in sterile versions, catering to applications requiring aseptic conditions.
Pore Sizes and Diameters: Offered in various pore sizes (e.g., 0.22 µm, 0.45 µm) and diameters (e.g., 13 mm, 25 mm, 30 mm) to accommodate different filtration needs.

Compare

Ask for Price

Description

The mixed cellulose ester (MCE) membrane is hydrophilic, comprising a blend of cellulose acetate (CA) and cellulose nitrate (CN) materials. MCE membranes feature a high proportion of cellulose nitrate, making them suitable for tasks similar to those performed by CN membranes.

2) Application

◆ HPLC sample preparation
◆ Routine QC analysis
◆ Content uniformity
◆ Removal of protein precipitates
◆ Dissolution testing
◆ Food analysis
◆ Biofuel analysis
◆ Environmental samples
3)Features
Better hydrophilic property.
Low protein binding.
Great water flux and better cutoff effect.
Ideal for aqueous based samples, tissue culture and sensitive biological samples.
Has a lower chemical resistance.
Autoclave: sterilized by dry heat at 121°C for 15mins.

4) How to choose filter size?
0ml-10ml Sample Volume uses 13mm Syringe Filters with a hold-up volume of less than 25μl.
10-100ml Sample Volume uses 25mm Syringe Filters with a hold-up volume of less than 100μl.
10-150ml Sample Volume uses 30mm Syringe Filters with a hold-up volume of less than 125μl.

Category: Accessories Brand: ALWSCI

Product Name	Welded MCE Non-Sterile Syringe Filter
Material	MCE
Material of Housing	PP
Effective Filtration Area	13mm/0.72cm²	25mm/3.4cm²	30mm/4.5cm²
Pore Size	0.22 μm /0.45 μm
Process Volume	＜10mL(13mm)	＜100mL(25mm)	＜150mL(30mm)
Maximum Operating Temperature	40℃-55℃
Maximum Operating Pressure	29 psi-87 psi
PH	3-10
Application	Chemical Filteration; Biological Filtration; Beverage Filtration
Package	100 pcs Packed in one Box

Cat. NO.	Diameter	Pore Size	Sterilization	Description	Package
C0001465	13 mm	0.22 μm	NO	MCE Welded Syringe Filter with Printing.	100 pcs/pk.
C0001466	13 mm	0.45 μm	NO	MCE Welded Syringe Filter with Printing.	100 pcs/pk.
C0001355	25 mm	0.22 μm	NO	MCE Welded Syringe Filter with Printing.	100 pcs/pk.
C0001356	25 mm	0.45 μm	NO	MCE Welded Syringe Filter with Printing.	100 pcs/pk.
