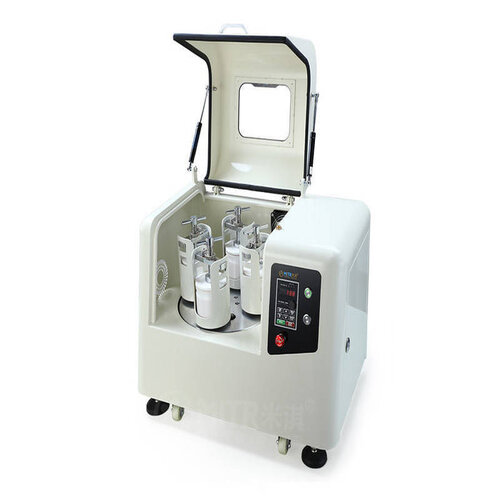

YXQM-1L Planetary Ball Mill


The YXQM-1L Planetary Ball Mill is a compact, high-efficiency laboratory grinding tool designed for transitioning from experimental to production-scale research. With four-pot simultaneous grinding, vacuum compatibility, and high pulverization energy, it’s ideal for precise mixing, homogenizing, and fine grinding of various materials across scientific and industrial sectors.

Compare

YXQM-1L Planetary Ball Mill is a transitional testing equipment from the experimental end to the production end. It has the characteristics of full functions, high efficiency and low noise. It can four pots grinding and produce 4 sample materials at a time. The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short grinding times. Suitable for all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility. This series of grinding mill can be equipped with vacuum jars, which can grind samples in a vacuum state. It is very suitable for research tasks such as scientific research institutions, universities, and corporate laboratories from the experimental end to the production end to verify the feasibility of mass production, as well as routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials.

Technical Specification of YXQM-1L Planetary Ball Mill

Applications Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry
Field of application New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, medicine, biology
Feed material Soft, hard, brittle, fibrous—dry or wet
Size reduction principle Impact force, friction
Material Feed Size < 5 mm soil<10 mm
Final Fineness * Used for colloid grinding, the sample is less than 0.1 micron
No. of Grinding Stations 4
Grinding method Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding
Grinding jar material Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate
Speed ratio 1 : 2
Operation Mode 3 types: unidirectional, alternating forward and reverse, multi-stage
Storable SOPs 15
Time setting Run/stop time: 0-9999 minutes
Power protection Power-off protection memory self-start function
Model YXQM-0.4L YXQM-1L YXQM-2L YXQM-4L
Grinding jar capacity 50-100ml 50-250ml 50-500ml 50-1000ml
Vacuum jar capacity 50ml 50-100ml 50-250ml 50-500ml
Revolution speed 5-450r/min 5-450r/min 5-400r/min 5-400r/min
Rotation speed 10-900r/min 10-900r/min 10-800r/min 10-800r/min
Power 0.55KW 0.55KW 0.75KW 0.75KW
Voltage 220V/50Hz
Weight 68kg 70kg 96kg 99kg

*Affected by sample material properties and instrument configuration/settings
