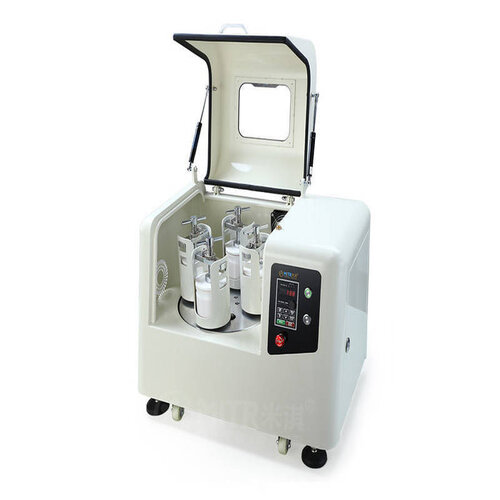

YXQM-2L Planetary Ball Mill


The YXQM-2L Planetary Ball Mill is a versatile and compact grinding device designed for laboratory use. It enables rapid grinding, mixing, homogenization, and dispersion of research samples to colloidal fineness, supporting small-batch material processing in various scientific and industrial sectors.

Compare

YXQM-2L Planetary Ball Mill it is used in colleges and universities, scientific research units and enterprise laboratories to quickly grind research samples to colloidal fineness in batches, and then mix, homogenize and disperse. Widely used in geological, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other scientific research and industrial sectors.

Technical Specification of YXQM-2L Planetary Ball Mill

Name Planetary ball mill
Model YXQM-2L(Oil seal mute)
Field of Application Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on.
Feed Material Medium or low hardness, hard, brittle, fibrous, viscous.
Size Reduction Principle impact, friction
Application pulverizing, grinding, mixing homogenizing,mechanical alloying
Main Disk Structure Planetary main disk gear soaked in lube oil, reduce noise.
Standard CE
Electrical Description 200-240V AC ,50-60Hz, 1PH (0.75KW)
Material Feed Size < 5 mm soil<10 mm
Final Fineness < 100 nm
Batch Size / Feed Quantity 4 x 500 ml
Grinding Jar Sizes 50 ml /100 ml / 250 ml / 500 ml
Vacuum Jar Size 250 ml /500ml( Stainless steel)
Feed Material Capacity 160 ml*4
Feed balls Capacity 160 ml*4
Sun Wheel Speed 10 – 400 r/min
Ball Mill Jar Speed 20 – 800 r/min
Total Grinding Speed 1200 /min
Speed Ratio 1:2
Material of Grinding Tools Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc.
Ball Size 1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm
No. of Grinding Stations 2 or 4
Mode Vertical planetary
Grinding Mode Dry/wet
Low Temperature Cooling OrLiquid Nitrogen Treatment Yes (air cooleror liquid nitrogenadded)
Oil Seal Position The bottom of planetary main disk
Disk Dimensions 360mm
Oil Seal Capacity 800ml(fill in before using the planetary ball mill)
Noise < 60dB(Within 3 metre)
Protection Code IP60
CN Patent Safety protection (No.ZL 2015 2 0836150.6)
CN Patent Oil seal silent (Patent No.ZL 2014 2 0375569.1)
CN Patent Frequency control(patent No.ZL 2016 2 0836150.6)
W x H x D Closed 30 45/64″ x 22 53/64″ x 26 49/64″ (780 x 580 x 680 mm)
Net Weight 242.5 lbs (110 kg)
