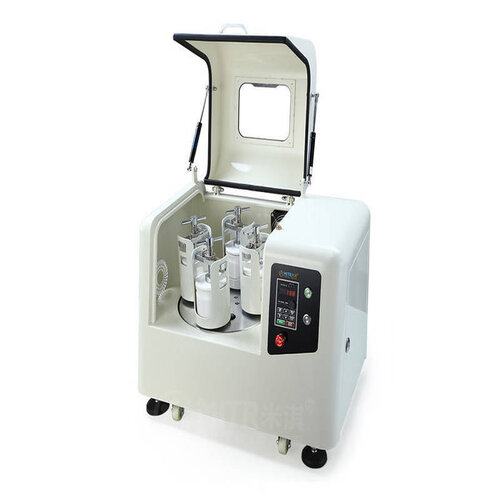

YXQM-8L Planetary Ball Mill it is used in colleges and universities, scientific research units and enterprise laboratories to quickly grind research samples to colloidal fineness in batches, and then mix, homogenize and disperse. Widely used in geological, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other scientific research and industrial sectors.
Technical Specification of YXQM-8L Planetary Ball Mill
| Name | Planetary ball mill |
| Model | YXQM-8L(Oil seal mute） |
| Field of Application | Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on. |
| Feed Material | Medium or low hardness, hard, brittle, fibrous, viscous. |
| Size Reduction Principle | Impact, friction |
| Application | pulverizing, grinding, mixing homogenizing,mechanical alloying |
| Main Disk Structure | Planetary main disk gear soaked in lube oil, reduce noise. |
| Standard | CE |
| Electrical Description | 220V/380VAC ,50Hz,1.5KW |
| Material Feed Size | < 5 mm soil<10 mm |
| Final Fineness | < 100 nm |
| Batch Size / Feed Quantity | 4 x 2L |
| Grinding Jar Sizes | 50 ml /100 ml / 250 ml / 500 ml/1000ml/2L |
| Vacuum Jar Size | 250 ml /500ml/1000ml/2L( Stainless steel) |
| Feed Material Capacity | 660ml*4 |
| Feed balls Capacity | 660ml*4 |
| Sun Wheel Speed | 10 – 320 r/min |
| Ball Mill Jar Speed | 20 – 640 r/min |
| Total Grinding Speed | 960 /min |
| Speed Ratio | 1:2 |
| Material of Grinding Tools | Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc. |
| Ball Size | 1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm |
| No. of Grinding Stations | 2 or 4 |
| Mode | Vertical planetary |
| Grinding Mode | Dry/wet |
| Low Temperature CoolingOr Liquid NitrogenTreatment | Yes (air cooler added) |
| Oil Seal Position | The bottom of planetary main disk |
| Disk Dimensions | 420mm |
| Oil Seal Capacity | 800ml(fill in before using the planetary ball mill) |
| Noise | < 60dB(Within 3 metre） |
| Protection Code | IP60 |
| CN Patent | Safety protection (No.ZL 2015 2 0836150.6） |
| CN Patent | Oil seal silent (Patent No.ZL 2014 2 0375569.1） |
| CN Patent | Frequency control(patent No.ZL 2016 2 0836150.6） |
| W x H x D Closed | 80*60*75cm |
| Net Weight | 220kg |
