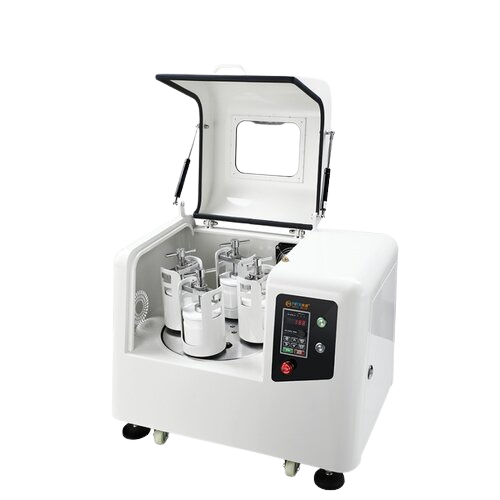

YXQM Series Planetary Ball Mill is a transitional testing equipment from the experimental end to the production end. It has the characteristics of full functions, high efficiency and low noise. It can four pots grinding and produce 4 sample materials at a time. The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short grinding times. Suitable for all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility. This series of grinding mill can be equipped with vacuum jars, which can grind samples in a vacuum state. It is very suitable for research tasks such as scientific research institutions, universities, and corporate laboratories from the experimental end to the production end to verify the feasibility of mass production, as well as routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials.
Technical Specification of YXQM Series Planetary Ball Mill
| Applications | Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry | ||||
| Field of application | New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, medicine, biology | ||||
| Feed material | Soft, hard, brittle, fibrous—dry or wet | ||||
| Size reduction principle | Impact force, friction | ||||
| Material Feed Size | < 5 mm soil<10 mm | ||||
| Final Fineness * | Used for colloid grinding, the sample is less than 0.1 micron | ||||
| No. of Grinding Stations | 4 | ||||
| Grinding method | Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding | ||||
| Grinding jar material | Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate | ||||
| Speed ratio | 1 : 2 | ||||
| Operation Mode | 3 types: unidirectional, alternating forward and reverse, multi-stage | ||||
| Storable SOPs | 15 | ||||
| Time setting | Run/stop time: 0-9999 minutes | ||||
| Power protection | Power-off protection memory self-start function | ||||
| Model | YXQM-8L | YXQM-12L | YXQM-16L | YXQM-20L | |
| Grinding jar capacity | 500-2000ml | 1000-3000ml | 1000-4000ml | 1000-5000ml | |
| Vacuum jar capacity | 500-2000ml | 1000-3000ml | 1000-4000ml | 1000-5000ml | |
| Revolution speed | 5-320r/min | 5-320r/min | 5-230r/min | 5-230r/min | |
| Rotation speed | 10-640r/min | 10-640r/min | 10-460r/min | 10-460r/min | |
| Power | 1.5KW | 1.5KW | 3KW | 3KW | |
| Voltage | Single phase, 220V/50Hz or three phase, 380V/50Hz | Three-phase, 380V/50Hz | |||
| Dimension(W x H x D) | 820 x 560 x 780mm | 990 x 660 x 870 mm | |||
| Weight | 99kg | 193kg | 230kg | 288kg | |
| *Affected by sample material properties and instrument configuration/settings | |||||
