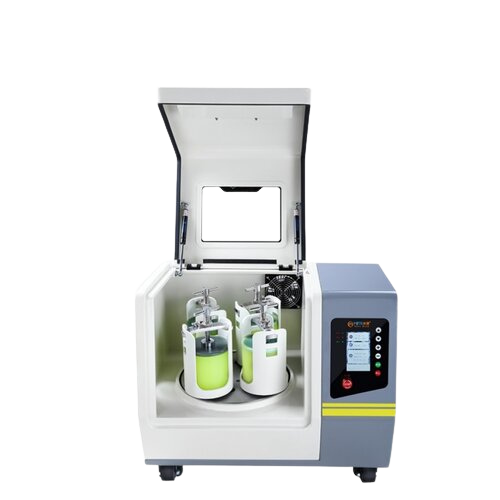

ZQM Series Planetary Ball Mill are indispensable equipment for mixing, fine grinding, small sample preparation, nanomaterial dispersion, new product development and small-batch production of high-tech materials. The ZQM series of intelligent laboratory products are high-end laboratory grinding equipment produced by professional German design engineers with digital screen display and one-button operation, integrating simplicity, beauty and safety. With full functions, high efficiency and low noise, it is an ideal equipment for scientific research units, colleges and universities, and corporate laboratories to obtain micro-particle research samples (multiple samples can be obtained at the same time in each experiment).
Equipped with a vacuum mill jar, the sample can be ground under vacuum. It is suitable for dry and wet crushing and refinement of hard, medium hardness, brittle and fibrous materials, and the sample fineness can be less than 0.1μm (colloid). It can also be used for grinding solids in suspensions, sample mixing and homogenization, and metal alloying, etc., all of which can achieve better results. Widely used in new energy, metallurgy, electronics, ceramics, geology, mining, building materials, chemical industry, light industry, beauty, environmental protection, matcha and other laboratory material research departments.
Technical Specification of ZQM Series Planetary Ball Mill
| Applications | Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry | ||||
| Field of application | New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, medicine, biology | ||||
| Feed material | Soft, hard, brittle, fibrous—dry or wet | ||||
| Size reduction principle | Impact force, friction | ||||
| Material Feed Size | < 5 mm ，soil<10mm | ||||
| Final Fineness * | Used for colloid grinding, the sample is less than 0.1 micron | ||||
| No. of Grinding Stations | 4 | ||||
| Grinding method | Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding | ||||
| Grinding jar material | Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate | ||||
| Speed ratio | 1 : 2 | ||||
| Operation Mode | 3 types: unidirectional, alternating forward and reverse, multi-stage | ||||
| Storable SOPs | 15 | ||||
| Time setting | Intelligent screen display digital settings，Run/stop time: 0-9999 minutes | ||||
| Power protection | Power-off protection memory self-start function | ||||
| Model | ZQM-2L | ZQM-4L | |||
| Grinding jar capacity | 50-500ml | 50-1000ml | |||
| Vacuum jar capacity | 50-250ml | 50-500ml | |||
| Revolution speed | 5-400r/min | 5-400r/min | |||
| Rotation speed | 10-800r/min | 10-800r/min | |||
| Power | 0.75KW | 0.75KW | |||
| Voltage | Single phase, 220V/50Hz | ||||
| Dimension(W x H x D) | 715 x 495 x 630 mm | ||||
| Weight | 98kg | 100kg | |||
| *Affected by sample material properties and instrument configuration/settings | |||||
