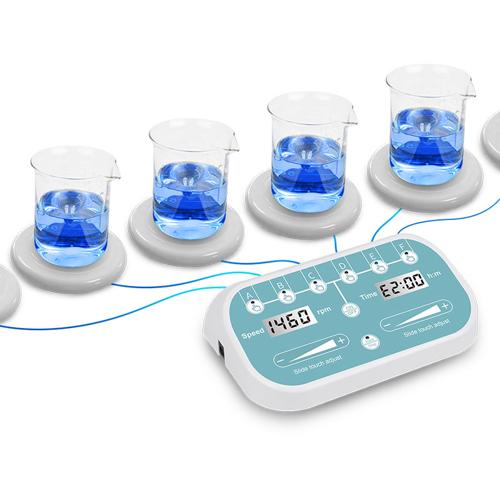

MS-6 Multi-point ultra-thin magnetic stirrer


The MS-6 Multi-point Ultra-thin Magnetic Stirrer provides precise, stable stirring for small-volume samples with a compact, multi-position design, ideal for various laboratories.

Compare

The MS-6 Multi-point Ultra-thin Magnetic Stirrer is an advanced, low-profile mixing solution designed to deliver uniform stirring across six points in a compact, ultra-thin body. Ideal for laboratories with limited space, this stirrer allows simultaneous mixing of up to six samples in flasks or beakers, making it an excellent choice for parallel experiments and high-throughput screening. The MS-6 features six powerful magnetic drive points evenly distributed across a single sleek, flat platform, offering synchronized or individual mixing depending on the configuration. Its modern ultra-thin design enhances portability, usability in fume hoods, and ease of cleaning. Built with a robust aluminum alloy chassis and a chemical-resistant top surface, the MS-6 is engineered for performance, durability, and lab safety.

Features of MS-6 Multi-point ultra-thin magnetic stirrer

  • Ultra-light and ultra-thin, novel appearance, compact size, saving experiment space.
  • The controller and the agitator are separated. The number and combination of stirrer can be adjusted arbitrarily, up to 6 stirrer.
  • Adopt the connection method of USB interface, easy to plug and unplug.
  • Each stirrer has its own speed and time, which makes it easier to compare experiments.
  • Touch keys and sliding touch adjustment, durable, novel and fashionable.
  • Advanced non-wearing magnetic coil technology, the operation is quieter and more stable, and the service life is longer.
  • The LCD screen displays the parameters in real time, the LED indicator shows the working status, and the instrument running status is more intuitive.

Technical Specification

Model MS-6A Controller MS-6B Stirrer
Max. stirring volume(H2O) 1L
Motor output power 4W
Speed setting (running) range 20-1500rpm(increment 10) (20-1500rpm)
Timing range 0-9 hours(0 means infinity, increment 5min)
Display method LCD
Working plate material PVC
Working plate size Φ120mm
Dimensions W.165×D.105×H.45mm W.120×D.120×H.19mm
Weight 0.48kgs 0.18kgs
Power adapter input AC100-240V 50/60Hz 60VA
Power adapter output DC 24V, 2A
