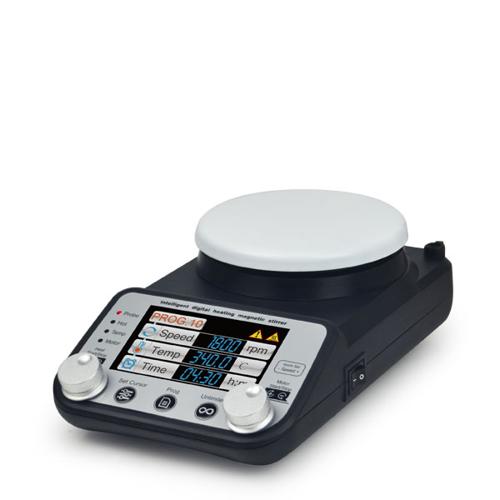

TP-350+ Digital Magnetic Stirrer Hot Plate Series


The heating plate of the TP-350+ Digital Magnetic Stirrer Hot Plate Series is made of special Ceramic. Magnetic stirring technology and humanized design is convenient for operation to meet various heating and stirring experimental needs.

Compare

The TP-350+ Digital Magnetic Stirrer Hot Plate Series is a professional-grade laboratory device that combines powerful magnetic stirring with precise digital temperature control. Built for laboratories that demand accuracy, safety, and durability, this series is perfect for a wide range of applications from routine sample mixing to complex chemical reactions. With a large ceramic-coated heating plate, the TP-350+ offers uniform heating, chemical resistance, and easy cleaning. The bright LCD screen displays both stirring speed and surface temperature in real time. The PID control system ensures highly accurate and stable temperature regulation, while the quiet brushless DC motor delivers smooth, consistent stirring for volumes up to 5 liters. Safety features include hot surface warning, over-temperature protection, and slip-resistant feet, making this stirrer hot plate ideal for demanding research and industrial environments.

Feature of TP-350E+ Digital Magnetic Stirrer Hot Plate Series

  • PID for temperature control. Two display windows. High precision measurement. Low overshoot(≤±5℃). Single button operation.
  • Inner and outer PT1000 for thermometry. Semiconductor technology control output. With couple broken protection function.
  • Stirring types are available for heating or stirring standard/non-standard reaction flasks from 50ml to 20L
  • DC brushless motor makes stable operation, low noise, long using life and no spark.
  • Using specially made ceramic disc heating surface, beauty, anti-corrosion and easy to clean.
  • 30 ° slope control panel, suitable for seated and standing point of view.
  • Adopt metal shell, high strength, quick heat dissipation, anti – corrosion.
  • Unique heating method, the surface maximum temperature can reach 340 ° C.
  • Magnetic stirring technology, low speed steady, high speed strong.
  • TP-350+ , 10 programs can be preset.
  • TP-350+ Adopts 4.3-inch color screen holographic display, which is convenient and intuitive.
Platform size Φ137mm
Platform Material Enamel
Speed Range 80~1800rpm
Temp. Range R.T. +5℃~340℃
Temp. setting range 30℃~340℃
Temp. stability ±3℃
Time Range 1min~99h59min
Stirring Point Quantity 1
Max. Stir Capacity 20L
Max. Size of Stirrer Stick 80mm
External Interface Temp. Sensor PT1000
Adjustable Safety Loop Min. Temp 50℃
Adjustable Safety Loop Max. Temp 350℃
Voltage AC220V/AC110V, 50/60Hz
Power 600W
Fuse 250V, 4A/8A, Ф5×20
Dimension(W.D.H) W. 160x D.270 x H.90mm
Net weight 2.4kgs
