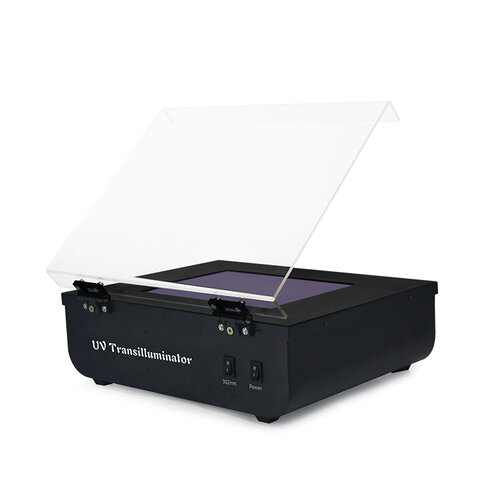

UV-6 UV Transilluminator

The UV-6 UV Transilluminator is a powerful laboratory device designed for the visualization of nucleic acids and proteins stained with traditional UV-excitable dyes such as Ethidium Bromide (EtBr). Equipped with a high-intensity UV light source at 312 nm wavelength, the UV-6 provides bright, uniform illumination for clear gel visualization. Constructed with a durable, chemical-resistant surface and integrated safety features, this transilluminator is essential for molecular biology workflows requiring gel documentation, excision, and analysis. The device includes a protective UV shield to minimize user exposure, ensuring safe operation in research and clinical laboratories.

Features of UV-6 UV Transilluminator

• Humanized design of the whole machine, the UV protection board can be stepless adjust at any Angle and positioning, to ensure the best protection of ultraviolet light, and does not affect the observation.
• Compact sealing structure design ensures that the cutting operation and the cleaning and cutting platform are free of leakage, which greatly reduces the possibility of gel contamination and internal damage caused by leakage, and greatly improves the service life of the ultraviolet cutting instrument.
• The special UV filter glass has good permeability to specific wavelength UV, which can ensure higher detection sensitivity and enhance the signal capture capability of the weak band.
• Reasonable structural design and high-quality UV lamp ensure uniform UV light intensity in the detection area of the UV transmission table.
• Compact shape, easy operation and sealed structure make the maintenance of the instrument simpler. Self-contained fan cooling device, extend the service life of the machine.
• Single wavelength standard 302nm UV lamp, and 254nm/365nm multiple wavelengths or combinations can be selected to match the gel observation of different dyes. Users can choose UV lamps with different wavelengths according to the experiment need.

Technical Specifications
